The System
Geometry
Curved surfaces framed with triangular lattices make the most efficient structures.
Geometrica structural system is ideal for surfaces of double curvature.
The triangle is the strongest geometric shape, and the most fundamental to structural framing. Individual triangles are joined into a lattice, and a lattice of triangles can be curved to form a dome, a hypar, or beautiful free-form surfaces. The resulting structures are strong, stiff, stable and very efficient.
Possibility of Shape
DOMES
Doubly curved domes (erected on a circular foundation) can span long distances. Their curvature transfers stresses efficiently with little to no bending moments, making them far stiffer than conventional flat surfaces.
freedomes
Geometrica variations on the dome theme -- varying radii, varying curvatures -- give designers unprecedented flexibility.
HypArwave
With the Geometrica system, you can extend structures and capture space in many ways, including double curvature in opposite directions.
3D Lattices and Vaults
For surfaces with zero or only one direction of curvature, a deeper Geometrica 3-D lattice provides strength and rigidity, distributing loads evenly and efficiently with much less weight than a conventional two-dimensional frame. Shapes include flat space frames and single curvature vaults.
Variety of Pattern

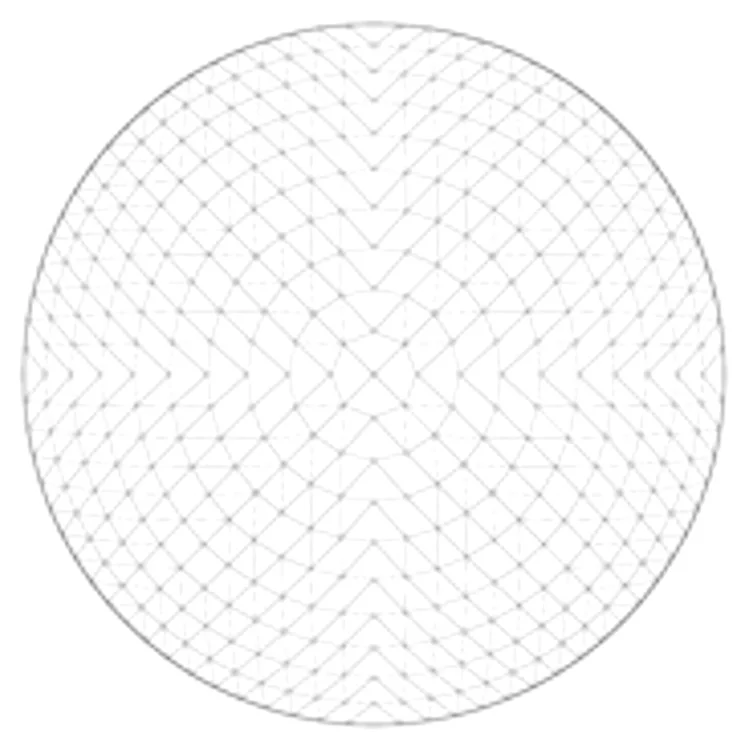

Framing pattern has an impact on a structure’s efficiency and esthetics. With Geometrica, your dome may be framed in a number of different patterns. Some examples include:
LACE™ Pattern
LAMELLA PATTERN

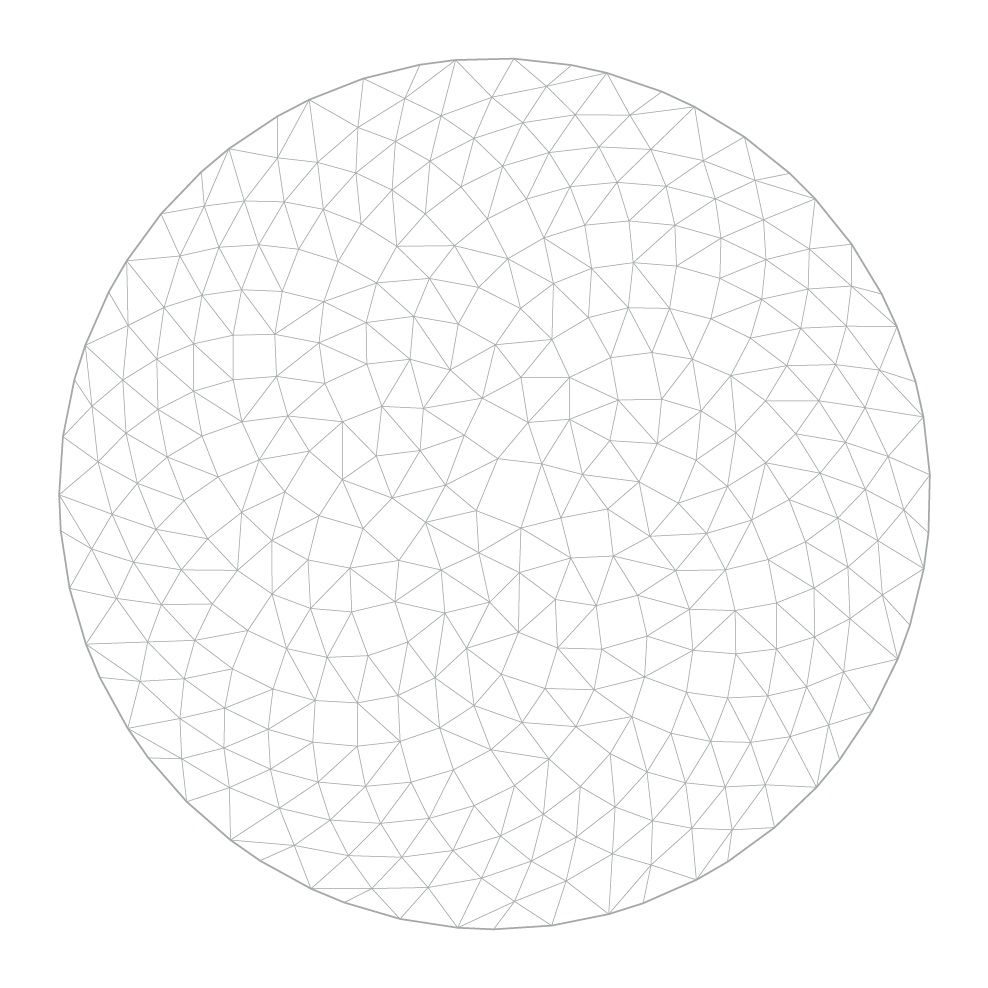

SOL™ PATTERN
Kiewitt
Lamella allows a playful pattern of light and opaque panels at the apex of the structure.
Structural Layers
Depending on the span and loading, Geometrica structures may be designed as a single-layer grid shell, a thin Vierendeel grid, a full double layer with diagonals between the layers or combinations of these, such as rib-reinforced single layer vaults.
